Snorkel TB42 - Telescopic Boom Lift
- Rugged diesel telescopic boom lift
- Four-wheel drive for confident rough-terrain performance
- Strong working envelope with 42-ft platform height
- Smooth proportional controls for precise operation
- Ideal for construction and industrial applications
Snorkel TB42 is a rugged rough-terrain telescopic boom lift engineered for dependable aerial access in construction, industrial, and maintenance environments. It provides a maximum platform height of 42 feet and strong horizontal reach, combined with four-wheel drive and proportional controls for smooth, controlled operation across challenging jobsites.
DIMENSIONS
Max. working height: 48 ft 0 in
Max. platform height: 42 ft 0 in
Max. horizontal reach: 33 ft 0 in
Platform size: 8 ft x 3 ft

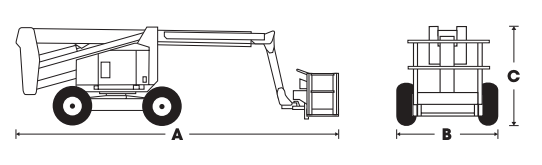

Overall length: (A) 24 ft 0 in
Overall width: (B) 7 ft 11.5 in
Stowed height: (C) 7 ft 9.5 in
Wheelbase: 8 ft 0 in
Ground clearance: 10 in
PERFORMANCE
Platform capacity (SWL): 500 lbs
Max. drive height: 42 ft 0 in (driveable at full height)
Max. wind speed: 28 mph
Max. drive speed (elevated): 0.75 mph
Max. drive speed (stowed): 3.0 mph
Gradeability: 25%
Platform rotation: 150°
Superstructure rotation: 360° continuous
Inside turning radius: 13 ft 6 in
Outside turning radius: 19 ft 9 in
Tires: Pneumatic rough-terrain lug tires
Controls: Proportional drive, lift & swing
Drive system: Four-wheel drive
POWER
Power source: Diesel
Engine manufacturer: Kubota
Engine model: V2403
Emissions compliance: Tier 4
WEIGHT
11,600 lbs
STANDARD FEATURES
- Telescopic boom design
- Four-wheel drive rough-terrain chassis
- Proportional drive, lift, and swing controls
- Hydraulic platform rotation
- 360° continuous turntable rotation
- Driveable at full height
- Pneumatic rough-terrain lug tires
- Tilt alarm
- Drive motion alarm
- Emergency power system
- Manual bleed-down valve
- Engine anti-restart system
- Hydraulic oil level and temperature gauges
- Hour meter
- Tie-down and lifting lugs
- ANSI compliant design

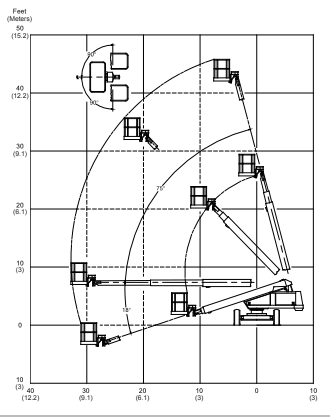

WORKING ENVELOPE
