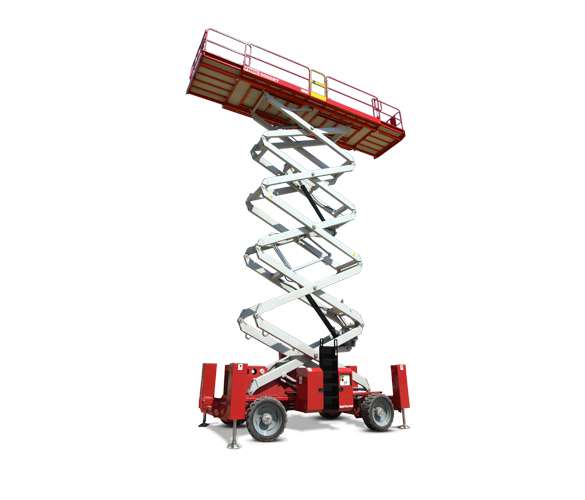

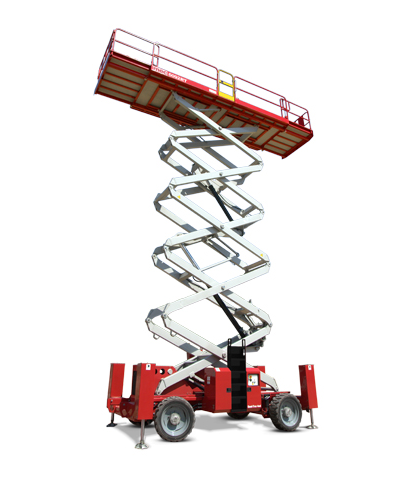

MEC 6092RT - Rough Terrain Scissor Lift
- Heavy-duty rough-terrain scissor lift with a 60 ft platform height
- Massive work platform with dual rollout extensions
- Large 1,200 lb capacity for materials and personnel
- 4-wheel drive and oscillating axle for confident performance across uneven terrain
- Ideal for large construction and industrial jobsite applications
MEC 6092RT is a heavy-duty rough-terrain scissor lift engineered to deliver high-capacity vertical access with a massive work area and robust terrain ability. With a 60 ft platform height, dual rollout deck extensions, and powerful diesel drive, it’s designed for demanding construction, industrial, and maintenance jobs where reach and load capacity matter.

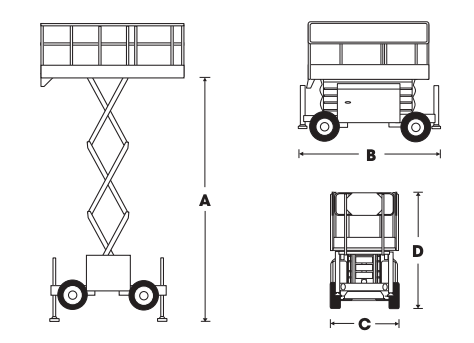

DIMENSIONS
Max. working height: 66 ft 0 in (60 ft platform height + 6 ft factor)
Max. platform height (A): 60 ft 0 in
Platform length (extended): 24 ft 9 in
Platform length (stowed): 17 ft 5 in
Platform width: 75 in (6 ft 3 in)
Machine length (stowed) (B): 17 ft 5 in
Machine width (C): 7 ft 8 in (92 in)
Stowed height (rails lowered): 7 ft 10 in
Stowed height (rails up) (D): 10 ft 4 in
Wheelbase: 113 in (9 ft 5 in)
Ground clearance: 14 in
PERFORMANCE
Platform capacity (SWL): 1,200 lbs
Drive speed (stowed): 4.0 mph
Drive speed (elevated): 0.4 mph
Max. drive height: 35 ft 0 in
Raise / lower time: 65 / 59 sec
Gradeability: 45%
Turning radius (inside): 6 ft 10 in
Turning radius (outside): 17 ft 5 in
POWER
Power source: Diesel
Engine manufacturer: Kubota
Engine model: V2403 Turbo Diesel
Fuel tank capacity: 30 gal
Hydraulic fluid capacity: 30 gal
WEIGHT
21,780 lbs
STANDARD FEATURES
- Ultra Deck work area with dual roll-out deck extensions and incremental locking positions
- Fully proportional drive and lift controls
- Oscillating rear axle with 14″ ground clearance
- Auto-leveling outriggers for platform stability
- Solid rough-terrain tires
- Easy access dual side entrances
- 110V power to platform
- Maintenance-free scissor bearings and easy access service points
- Emergency shut-off at platform and lower controls
- Motion alarm and drive speed interlock
- Multi-axis tilt sensor
- Multiple disc brakes with manual release
- Platform swing gates and fold-down guardrails
