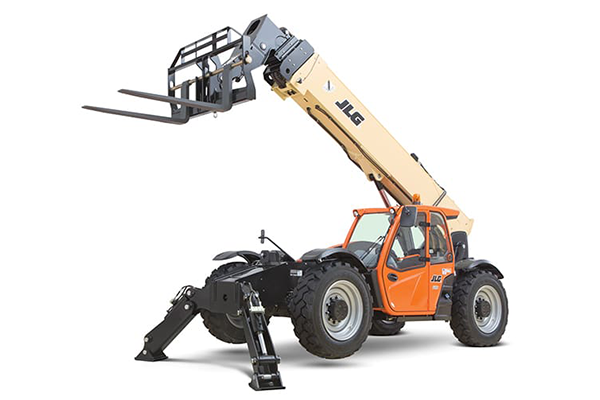

JLG 1255 - Telehandler
- Heavy-duty diesel telehandler with high capacity and long reach
- 12,000 lb rated capacity for demanding material handling
- Up to 55 ft lift height for elevated worksite access
- 42 ft forward reach for efficient placement of loads
- Operator-focused cab and stabilization systems for confident performance
JLG 1255 is a heavy-duty diesel telehandler designed for robust material handling and elevated lift performance on construction and industrial jobsites. It offers a high lift height, long forward reach, and substantial load capacity to efficiently move and place heavy loads with precision.
DIMENSIONS
Overall length: 20 ft 1 in
Overall width: 8 ft 6 in
Overall height: 8 ft 4 in
Wheelbase: 11 ft 6 in
Ground clearance: 1 ft 6 in
PERFORMANCE
Rated capacity: 12,000 lbs
Load at max height: 5,000 lbs
Load at max reach: 3,500 lbs
Max lift height: 55 ft
Maximum forward reach: 42 ft
Frame leveling: 10°
Top travel speed (4-speed): 20 mph
Outside turning radius: 14 ft
POWER
Power source: Diesel
Engine manufacturer: Cummins
Engine model: QSF3.8L Tier 4 Final
Gross power: 130 hp
Fuel tank capacity: 38.3 gal
WEIGHT
33,960 lb
STANDARD FEATURES
- Stabil-Trak rear axle stabilization system
- Multifunction joystick controls
- Auxiliary hydraulics for attachments
- Operator cab with integrated armrest and instrumentation
- Wet disc service brakes with spring-applied parking brake
- Planetary axles
- LED motion/amber beacon
- ClearSky Smart Fleet telematics hardware
- Easy-access service points
- 4-wheel hydraulic steering with selectable modes: 2-wheel front, 4-wheel circle, 4-wheel crab
- Powershift transmission (4 forward / 3 reverse)
