Snorkel S3219E - Electric Slab Scissor Lift
- Compact electric slab scissor lift with efficient 19 ft platform height
- Quiet, zero-emission operation for indoor/outdoor use
- Narrow chassis for doorway and tight space access
- Smooth proportional controls for precise positioning
- Ideal for building maintenance, installation, and light industrial tasks
Snorkel S3219E is a compact electric slab scissor lift designed for efficient indoor/outdoor access with zero emissions. Its narrow footprint and smooth proportional controls make it ideal for maintenance, installation, and facility work where maneuverability and quiet operation matter.
DIMENSIONS
Max. working height: 25 ft 6 in
Max. platform height: 19 ft 6 in
Platform size (stowed): 28.25 in × 63.75 in
Platform size (extended): 28.25 in × 99.75 in
Deck extension length: 36 in
Overall length (with step): 70.4 in
Overall length (without step): 68.3 in
Overall width: 32 in
Stowed height: 83 in
Ground clearance (stowed): 2.63 in
Ground clearance (elevated): 0.75 in
Inside turning radius: 4 in
Outside turning radius: 64.25 in
PERFORMANCE
Platform capacity (SWL): 550 lbs
Max. drive height: 19 ft 6 in
Max. wind speed: 28 mph
Max. drive speed (stowed): 2.0 mph
Max. drive speed (elevated): 0.4 mph
Raise / lower time: 20 / 36 sec
Gradeability: 25%
Tires: 12 × 4 non-marking rubber
Controls: Proportional joystick
Drive system: 2-wheel drive
POWER
Power source: 24V DC battery electric
Battery system: Deep-cycle batteries
Charger: Automatic on-board charger (90–240V)
WEIGHT
3,170 lbs
STANDARD FEATURES
- Roll-out deck extension with dual locks
- Non-marking tires
- Saloon-door-style entry gates
- Proportional controls, including descent
- Descent alarm and all-motion alarm
- Platform overload system
- Hour meter and on-board diagnostics display
- Integrated battery charger
- Battery condition indicator
- Power line to platform
- Crane and forklift lifting points
- Dual lanyard attachment points
- Flashing amber light
- Scissor stack roller slide plates
- Swing-out service trays
- ANSI compliant design

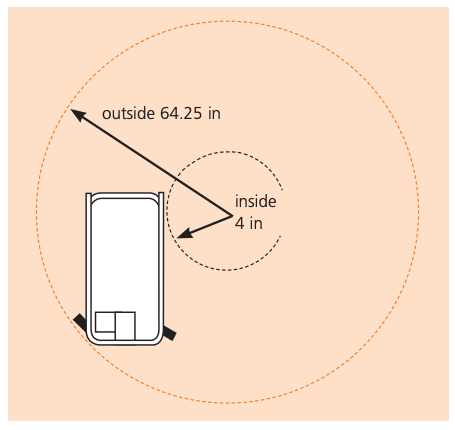

TURNING RADIUS
